20 Bolt Torque Pattern

Torque Sequence: 1, 17, 9, 5, 13, 3, 19, 11, 7, 15, 2, 18, 10, 6, 14, 4, 20, 12, 8, 16

For 20 bolt flanges, torque bolts in a criss-cross sequence.

Lookup flange bolt torque patterns on your phone in seconds

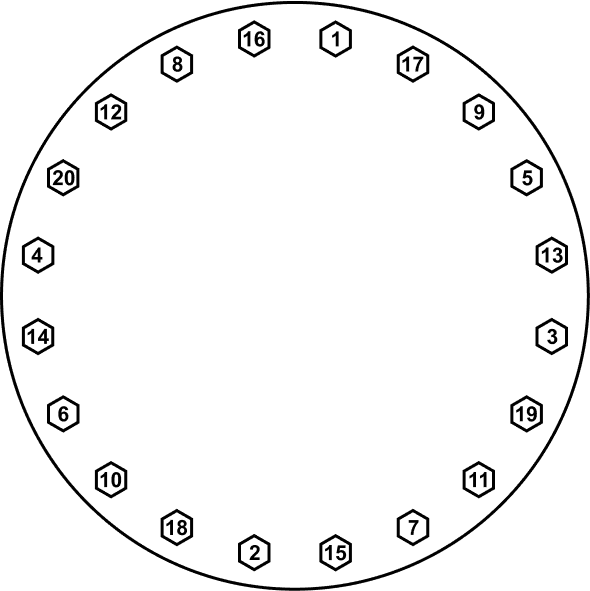

For those who need to download an image (the top graphic is SVG) we include a high resolution image of the 20 bolt torque sequence below.
