24 Bolt Torque Pattern

117951321319117152321810614224201281624

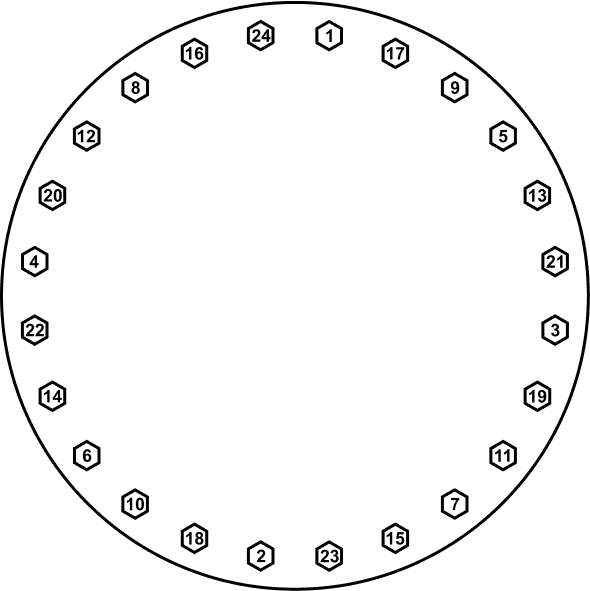

Torque Sequence: 1, 17, 9, 5, 13, 21, 3, 19, 11, 7, 15, 23, 2, 18, 10, 6, 14, 22, 4, 20, 12, 8, 16, 24

For 24 bolt flanges, torque bolts in a criss-cross sequence.
