64 Bolt Torque Pattern

64 bolt torque pattern15749413325179513212937455361359514335271911715233139475563258504234261810614223038465462460524436282012816243240485664

Torque Sequence: 1, 57, 49, 41, 33, 25, 17, 9, 5, 13, 21, 29, 37, 45, 53, 61, 3, 59, 51, 43, 35, 27, 19, 11, 7, 15, 23, 31, 39, 47, 55, 63, 2, 58, 50, 42, 34, 26, 18, 10, 6, 14, 22, 30, 38, 46, 54, 62, 4, 60, 52, 44, 36, 28, 20, 12, 8, 16, 24, 32, 40, 48, 56, 64

For 64 bolt flanges, torque bolts in a criss-cross sequence.


Lookup flange bolt torque patterns on your phone in seconds

App Store badge for the Flange Bolt Chart appGet it on Google Play
Flange bolt chart app screenshot

High-resolution image for download

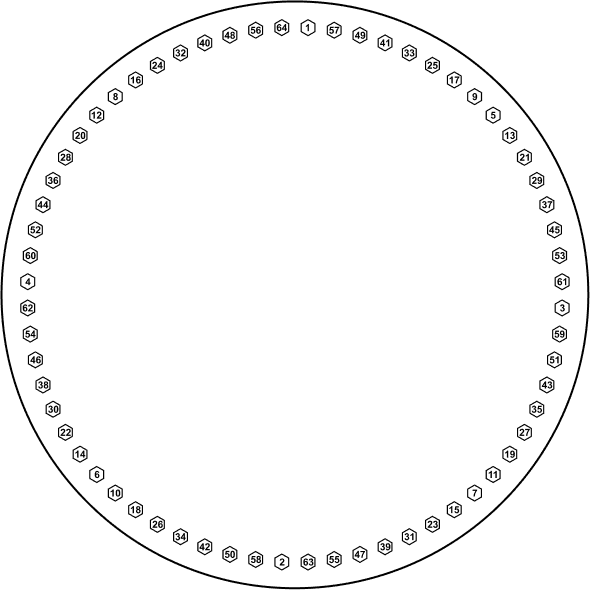

For those who need to download an image (the top graphic is SVG) we include a high resolution image of the 64 bolt torque sequence below.

64 bolt torque pattern
