68 Bolt Torque Pattern

68 bolt torque pattern1655749413325179513212937455361367595143352719117152331394755632665850423426181061422303846546246860524436282012816243240485664

Torque Sequence: 1, 65, 57, 49, 41, 33, 25, 17, 9, 5, 13, 21, 29, 37, 45, 53, 61, 3, 67, 59, 51, 43, 35, 27, 19, 11, 7, 15, 23, 31, 39, 47, 55, 63, 2, 66, 58, 50, 42, 34, 26, 18, 10, 6, 14, 22, 30, 38, 46, 54, 62, 4, 68, 60, 52, 44, 36, 28, 20, 12, 8, 16, 24, 32, 40, 48, 56, 64

For 68 bolt flanges, torque bolts in a criss-cross sequence.


Lookup flange bolt torque patterns on your phone in seconds

App Store badge for the Flange Bolt Chart appGet it on Google Play
Flange bolt chart app screenshot

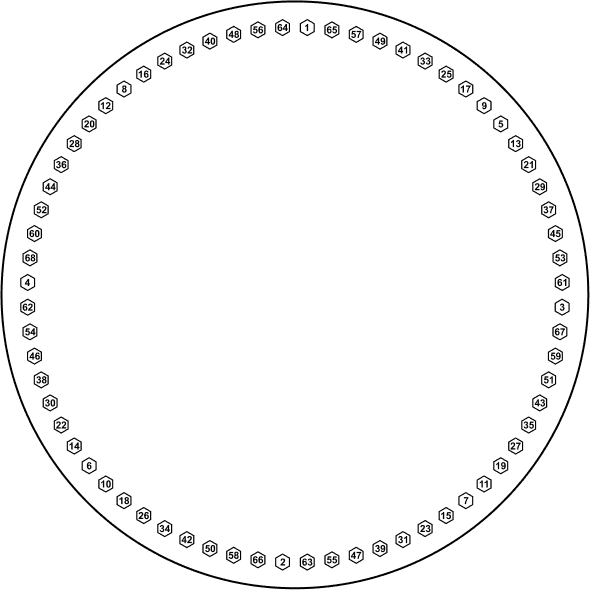

High-resolution image for download

For those who need to download an image (the top graphic is SVG) we include a high resolution image of the 68 bolt torque sequence below.

68 bolt torque pattern
