88 Bolt Torque Pattern

88 bolt torque pattern18173655749413325179513212937455361697785383756759514335271911715233139475563717987282746658504234261810614223038465462707886484766860524436282012816243240485664728088

Torque Sequence: 1, 81, 73, 65, 57, 49, 41, 33, 25, 17, 9, 5, 13, 21, 29, 37, 45, 53, 61, 69, 77, 85, 3, 83, 75, 67, 59, 51, 43, 35, 27, 19, 11, 7, 15, 23, 31, 39, 47, 55, 63, 71, 79, 87, 2, 82, 74, 66, 58, 50, 42, 34, 26, 18, 10, 6, 14, 22, 30, 38, 46, 54, 62, 70, 78, 86, 4, 84, 76, 68, 60, 52, 44, 36, 28, 20, 12, 8, 16, 24, 32, 40, 48, 56, 64, 72, 80, 88

For 88 bolt flanges, torque bolts in a criss-cross sequence.


Lookup flange bolt torque patterns on your phone in seconds

App Store badge for the Flange Bolt Chart appGet it on Google Play
Flange bolt chart app screenshot

High-resolution image for download

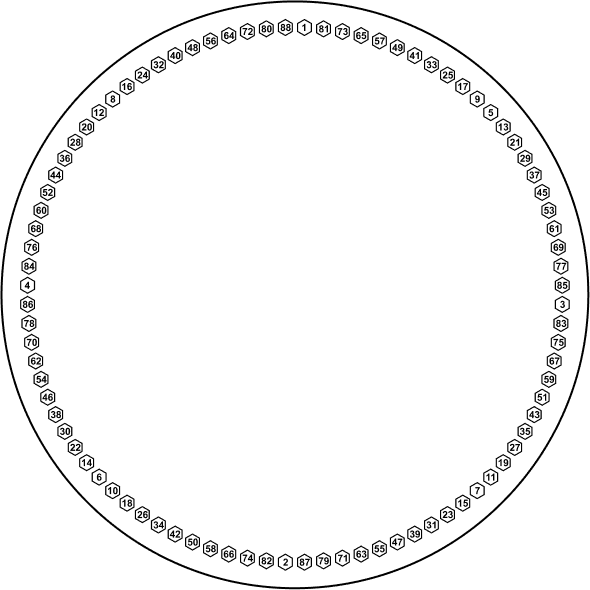

For those who need to download an image (the top graphic is SVG) we include a high resolution image of the 88 bolt torque sequence below.

88 bolt torque pattern
